Colours

Colour spaces and colour use

Roland Krause

MADS6

Monday, 9 December 2024

Contents

• How we see colors
• Representing color on a screen
• Use of color

Introduction

Colours

Learning objectives

• Know about colour spaces - RGB and HCL
• Use fewer colours
• Finding the right palette
• Choose a palette for your project

Material

Fundamentals of Data Visualization

• Chapter 4 - Colours
• Chapter 19 - Common pitfalls of color use
• Chapter 25 - Line drawings

ggplot2 book

• Chapter 11

How we see colors

Your turn

Take the quiz

05:00

Perception of colours

Human vision

• Perception of light/dark contrasts
• Yellow/blue contrasts
• Green/red contrasts

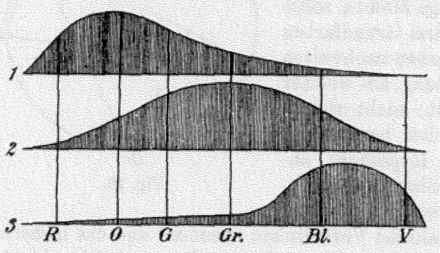

Three types of color receptors

Representing color on a screen

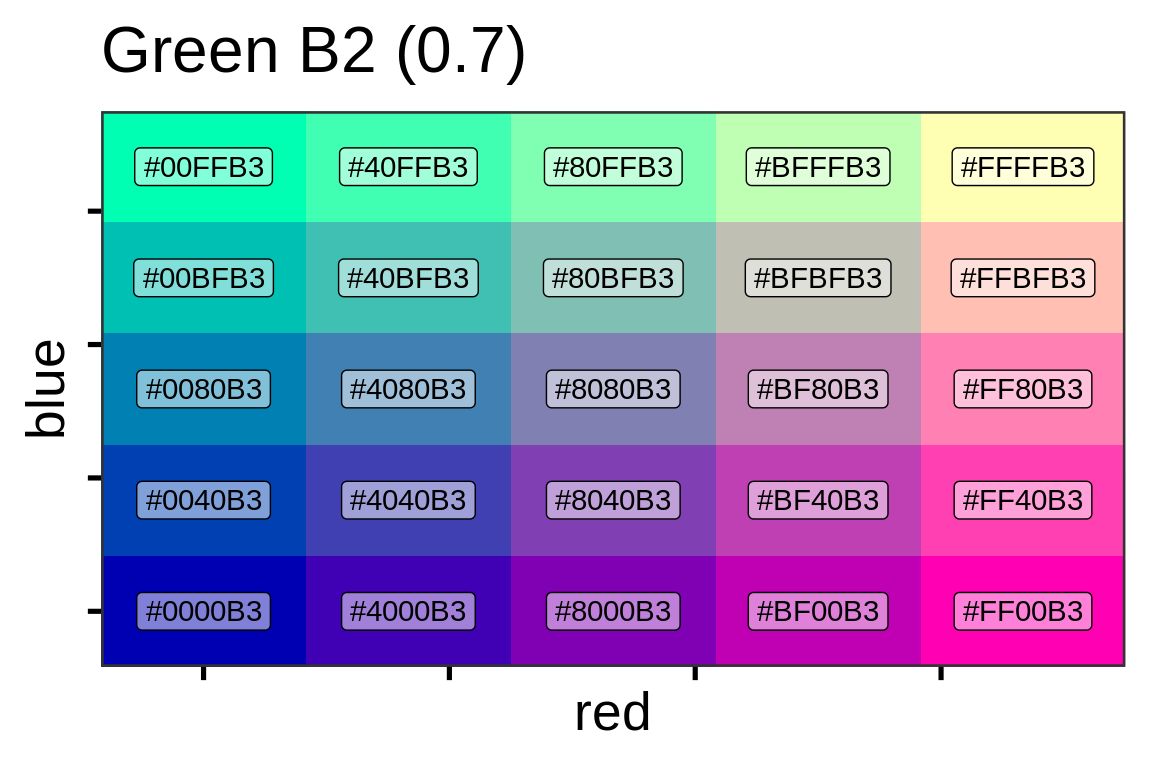

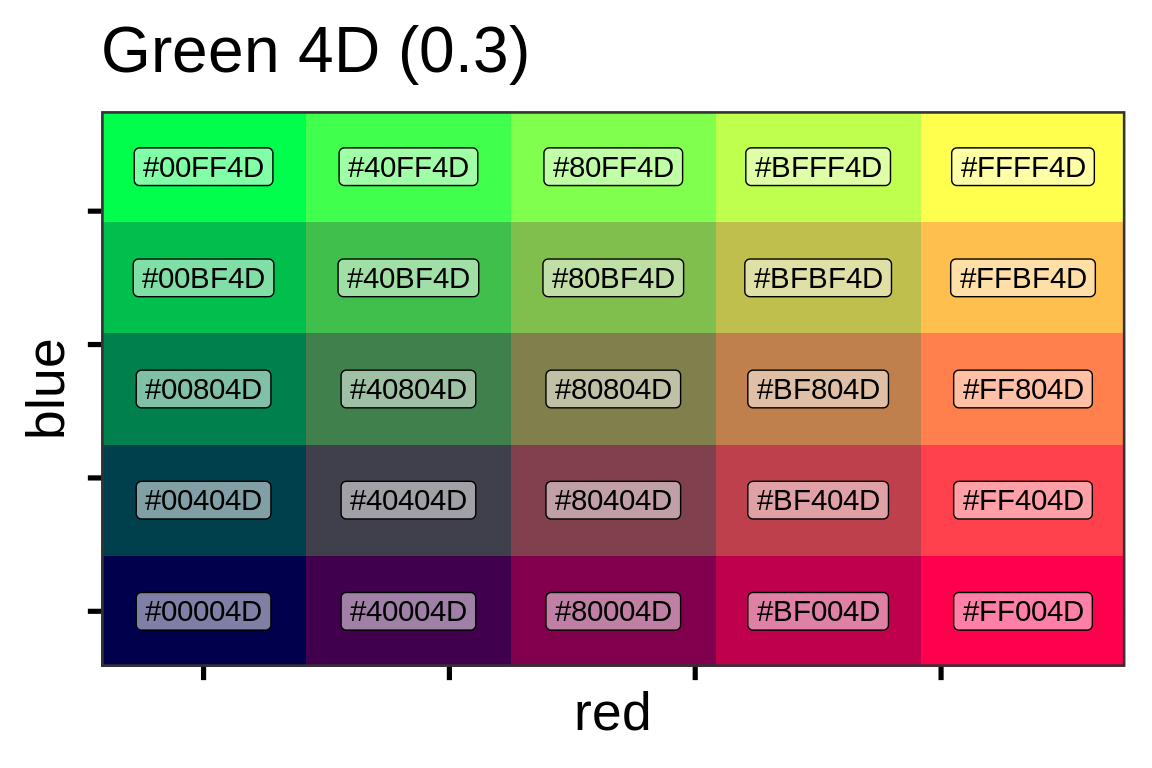

RGB - Red Green Blue

• The most commonly encountered color system.

• Hexadecimal notation allows 16.7M colors

  • Red #FF0000
  • Blue #00FF00
  • Green #0000FF

System is additive, e.g. the maximal value #FFFFFF corresponds to white.

Interpretation of literal colors in ggplot with I() function.

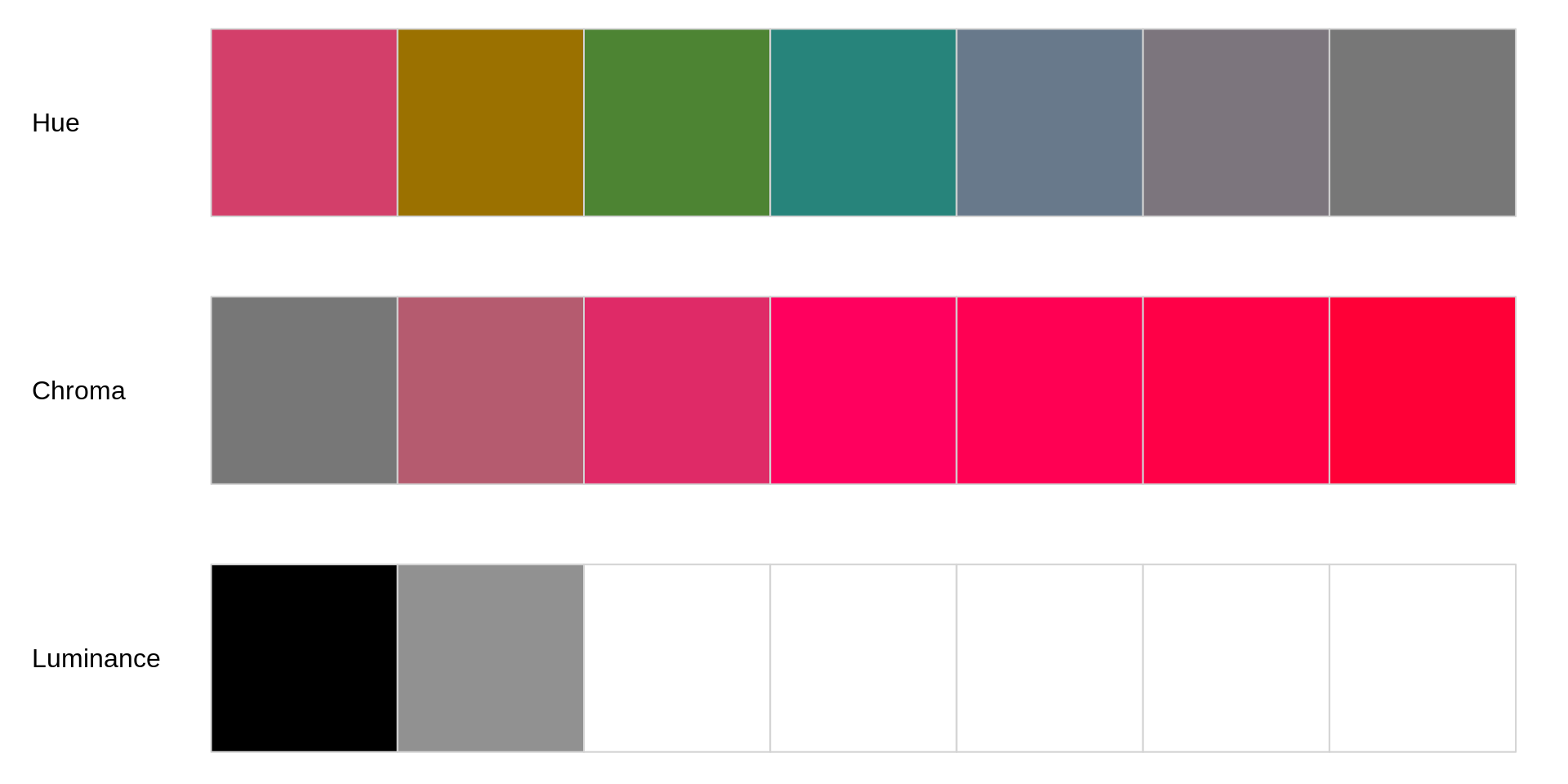

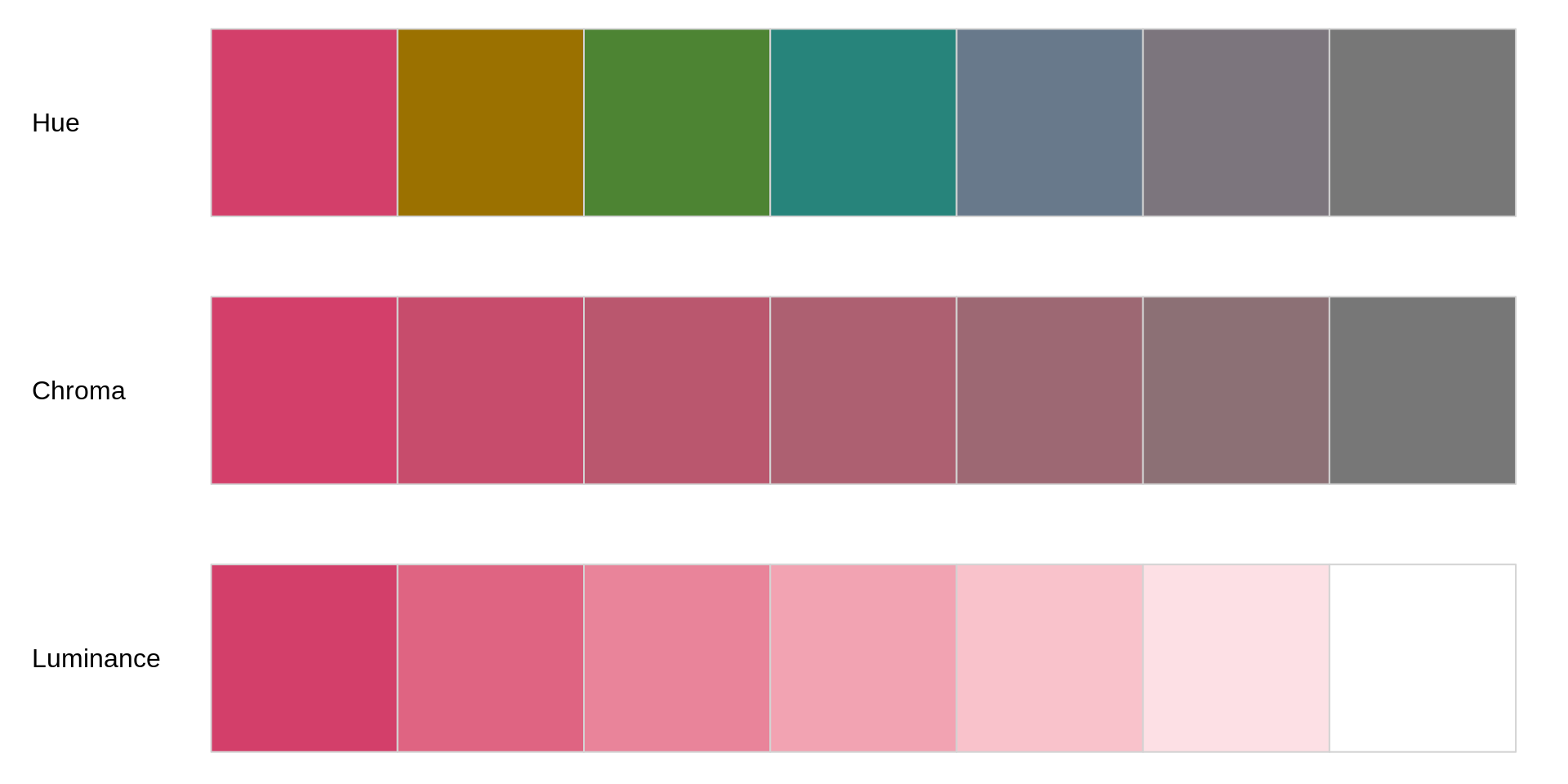

HCL - Hue, Chroma, Luminance

Configuration

Parameter	Select	Range
Hue	0	[0-360]
Chroma	100	[100-0]
Luminance	50	[50-100]

HCL scales are limited

Parameter	Start	Range
Hue	0	[0-360]
Chroma	0	[0-360]
Luminance	0	[0-360]

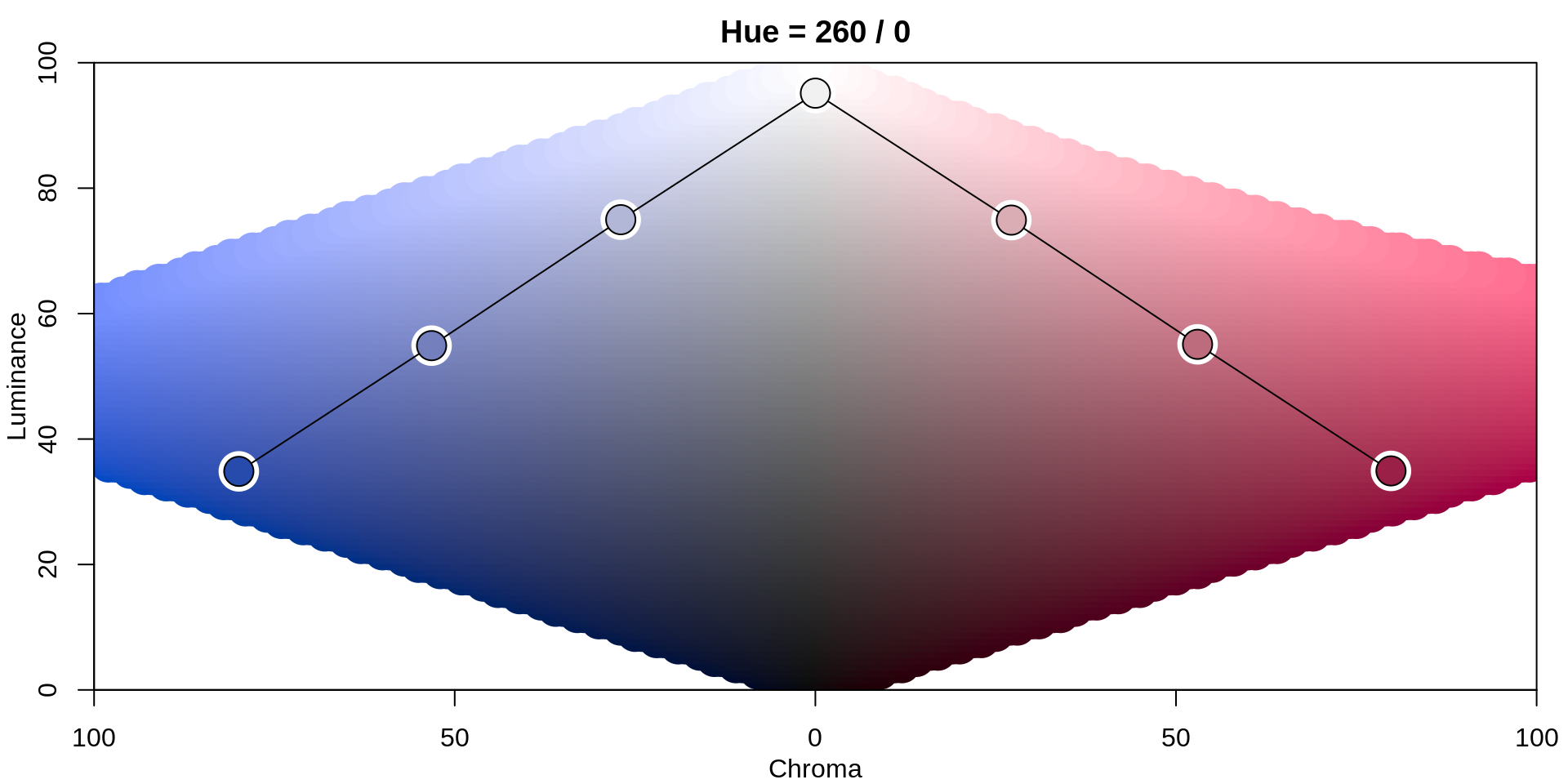

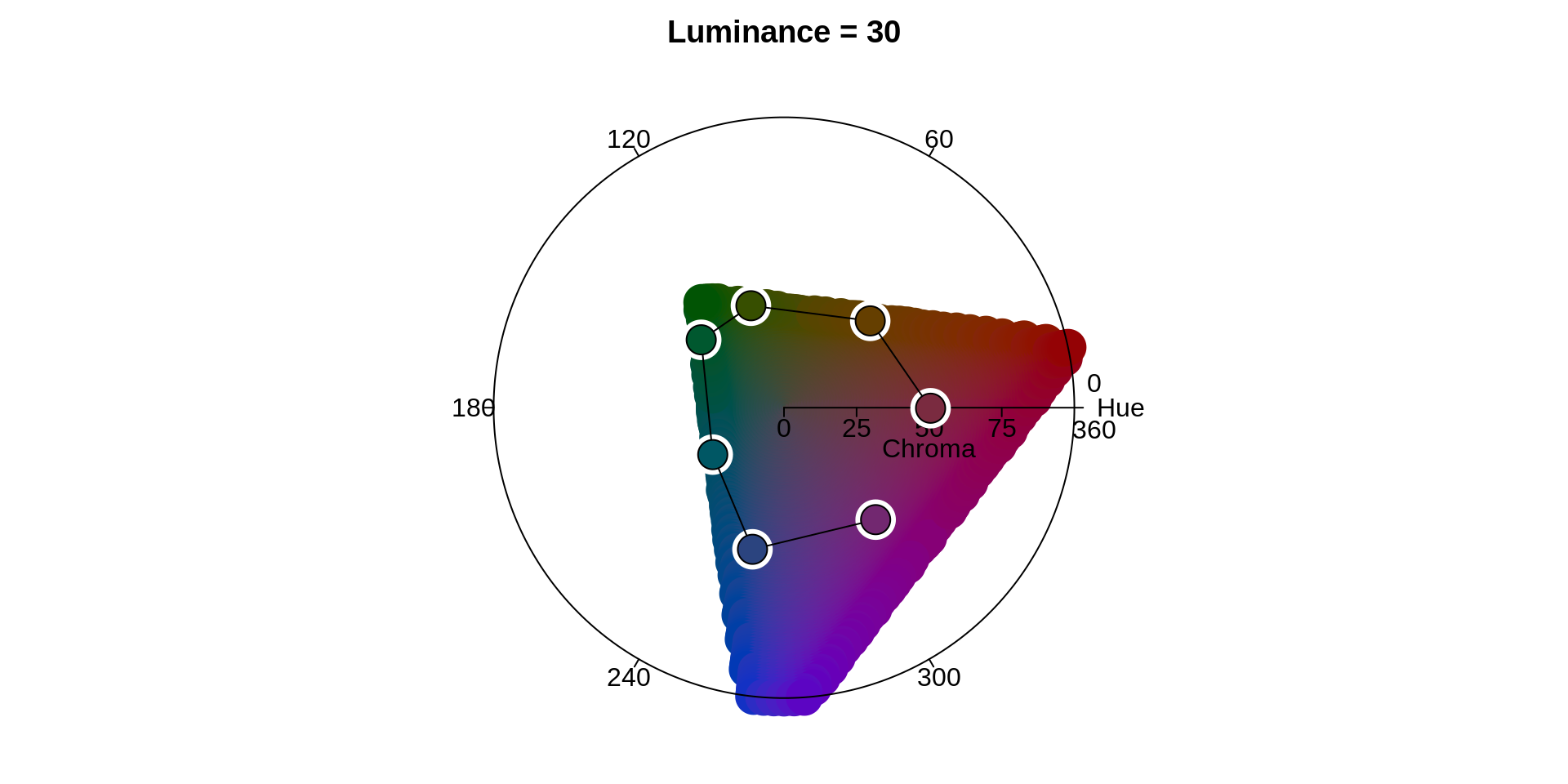

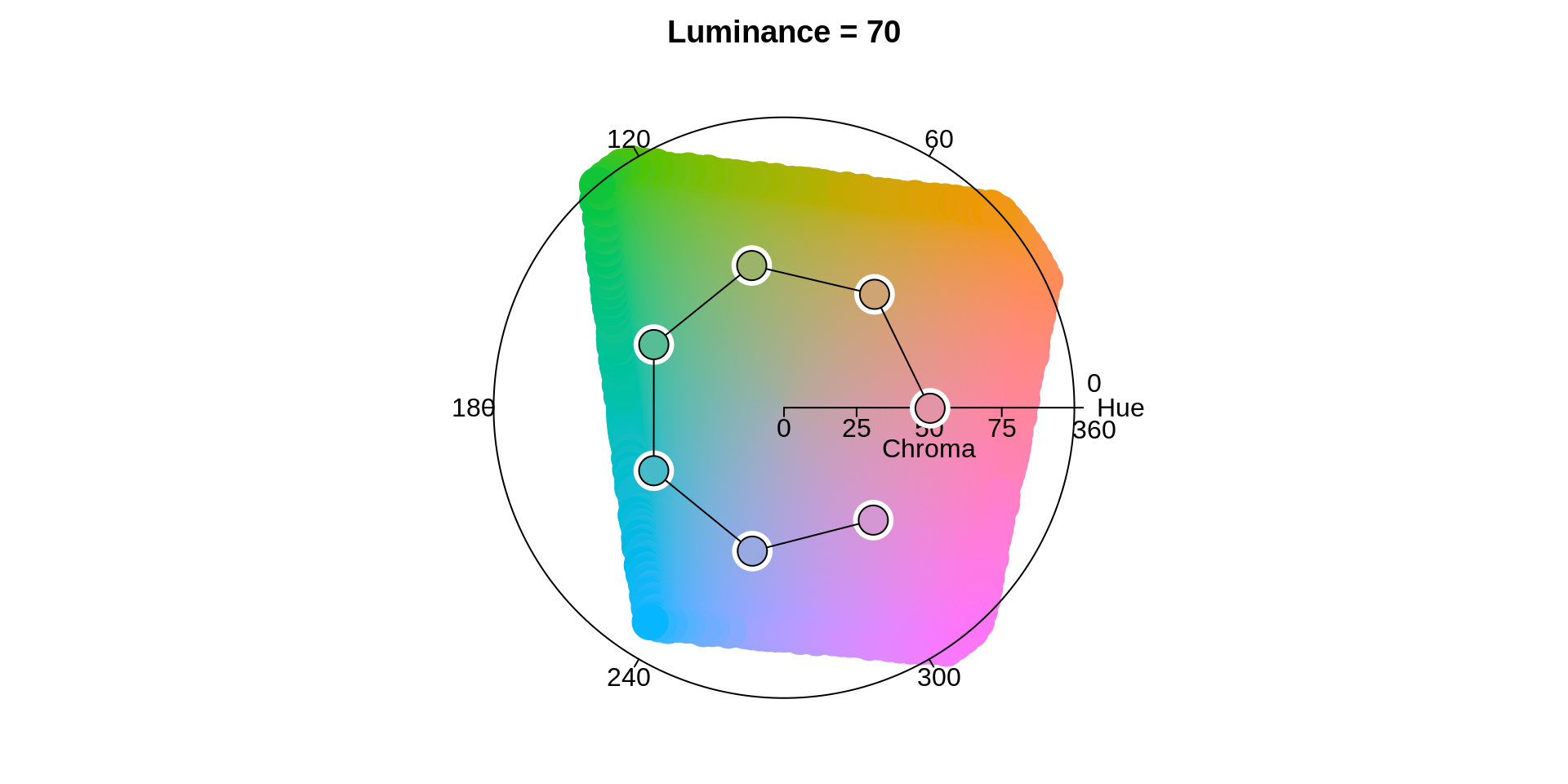

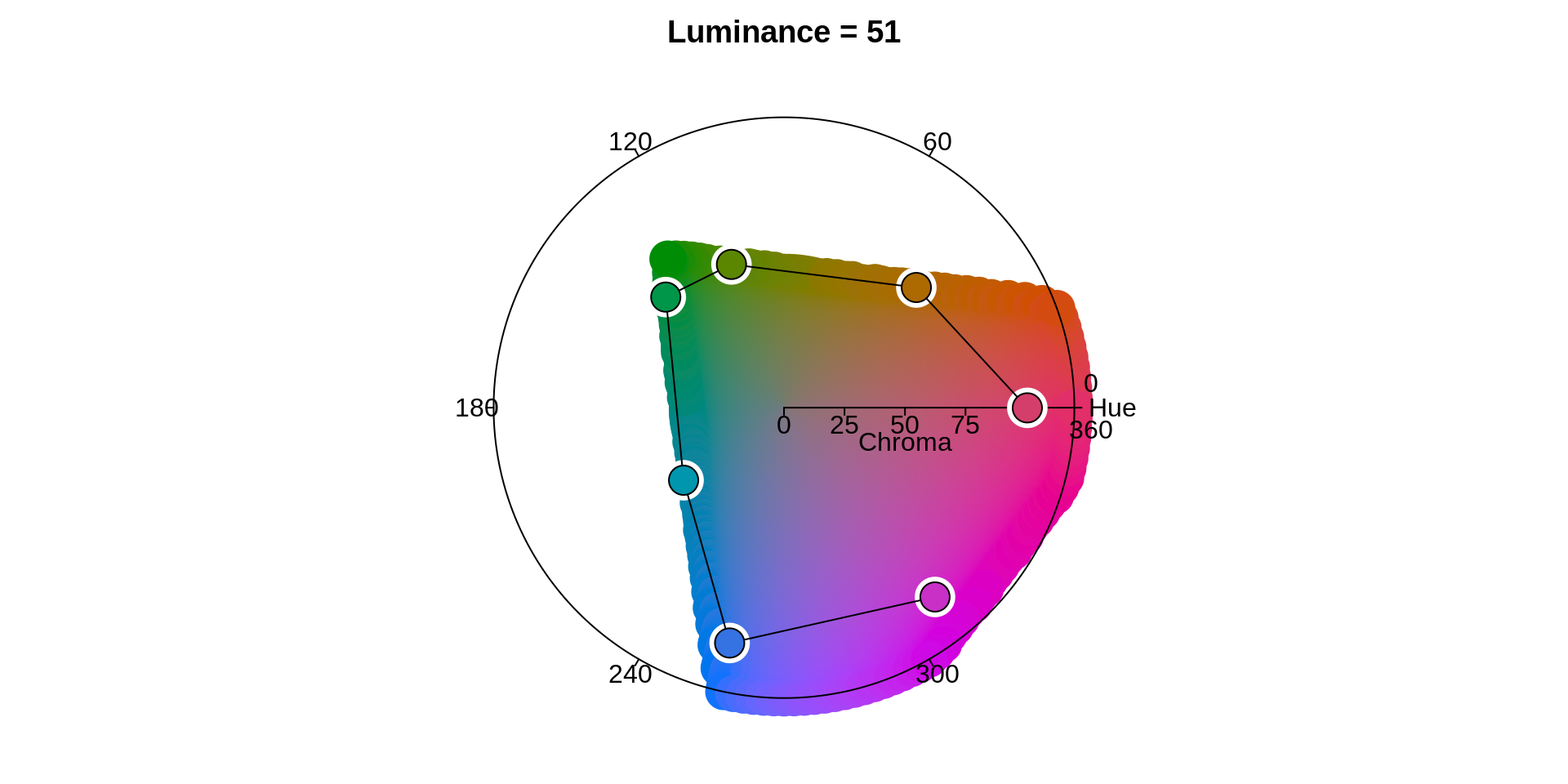

Choosing colours in HCL space

RGB is easier to use

• All values generate a colour

HCL is more complex in use

• Palettes map to preception of colour

Use of color

Use of color

1. Color as an extra dimension to map

• Categorical values
• Numerical values

2. Color as a highlight

Application in the wild

538 polls - polls, use of repeated coding

Middle class jobs - two point comparison

Thatcher vs May - waffle chart

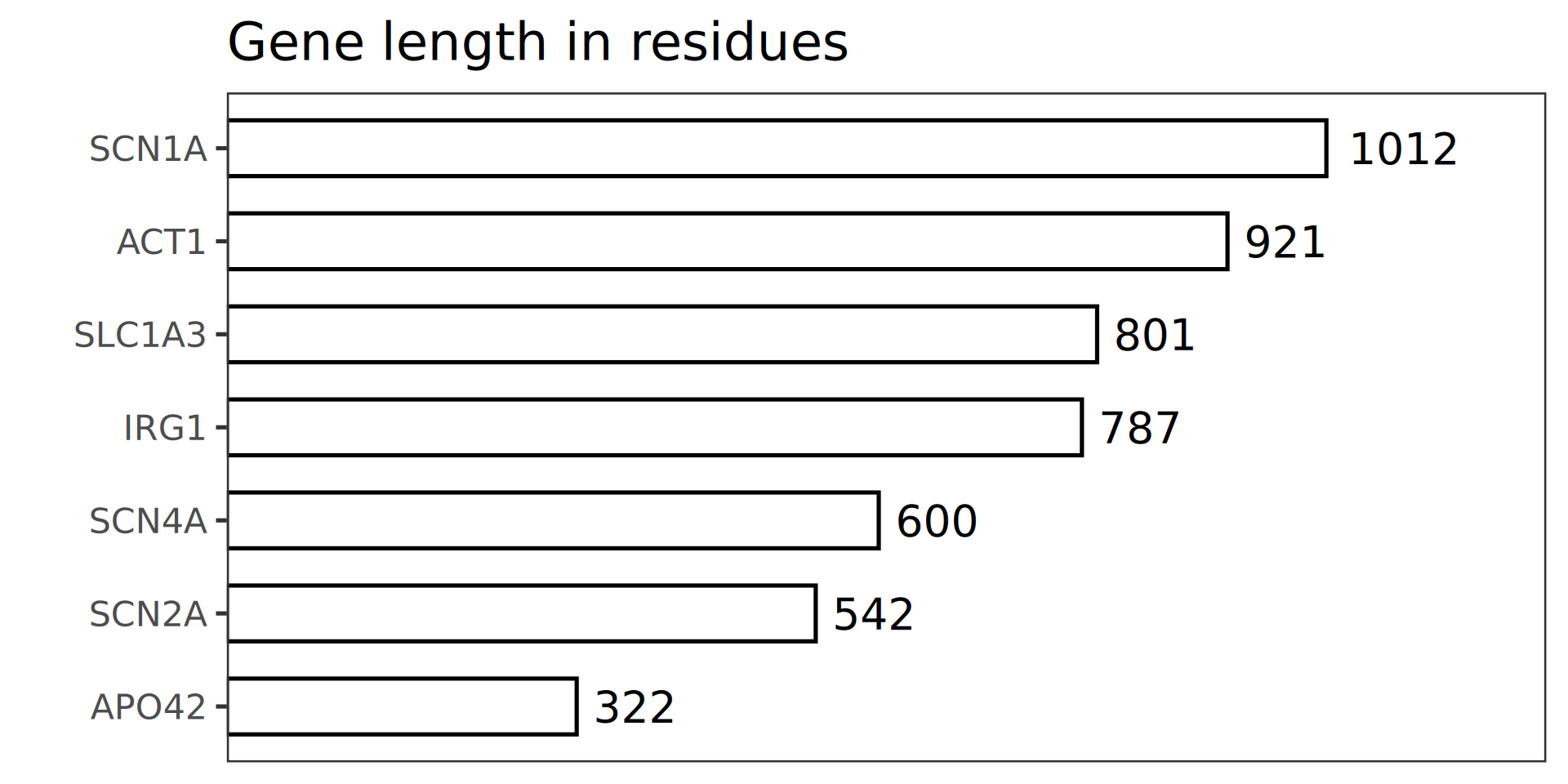

Color and context

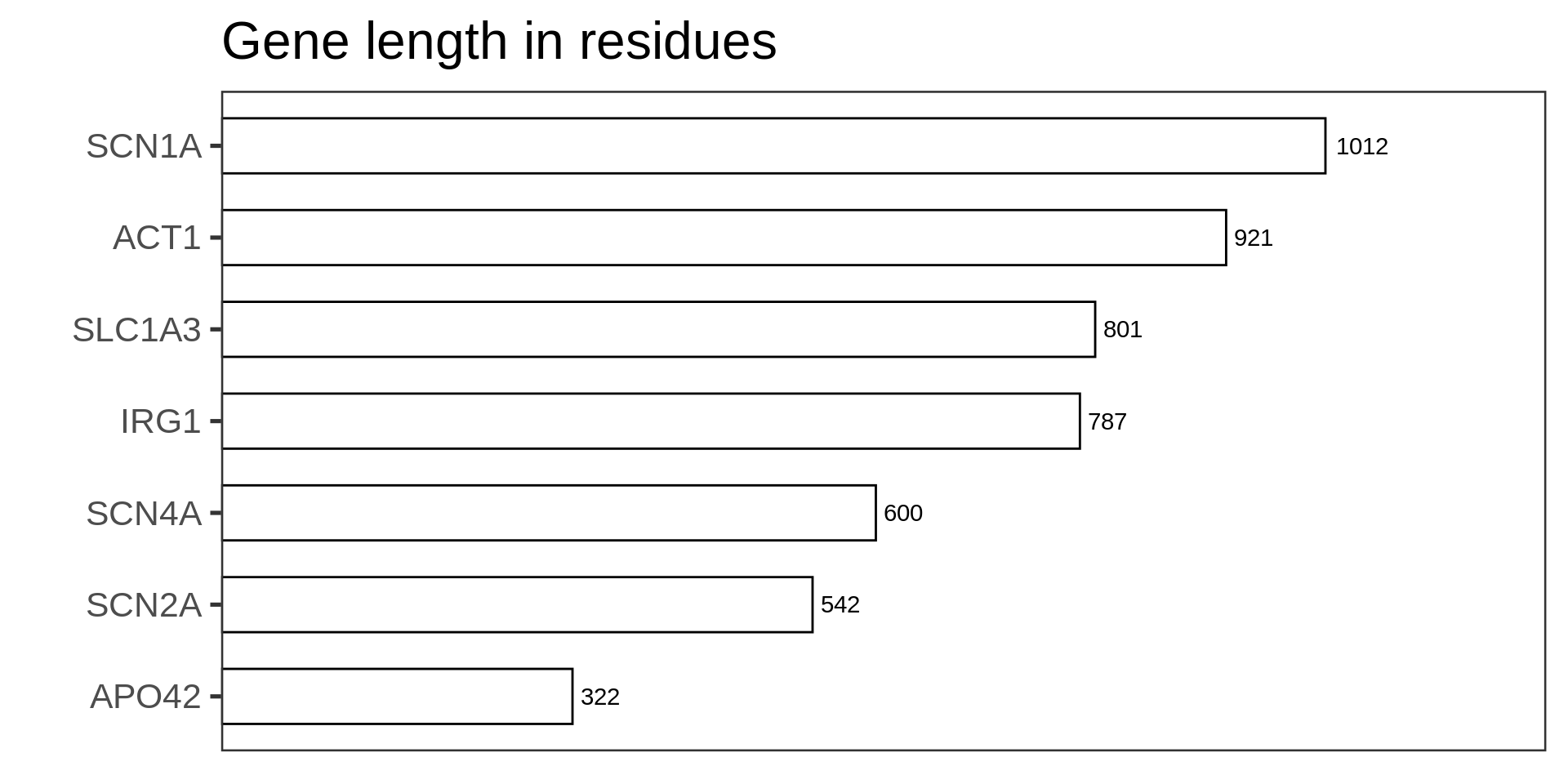

Why is this not the default?

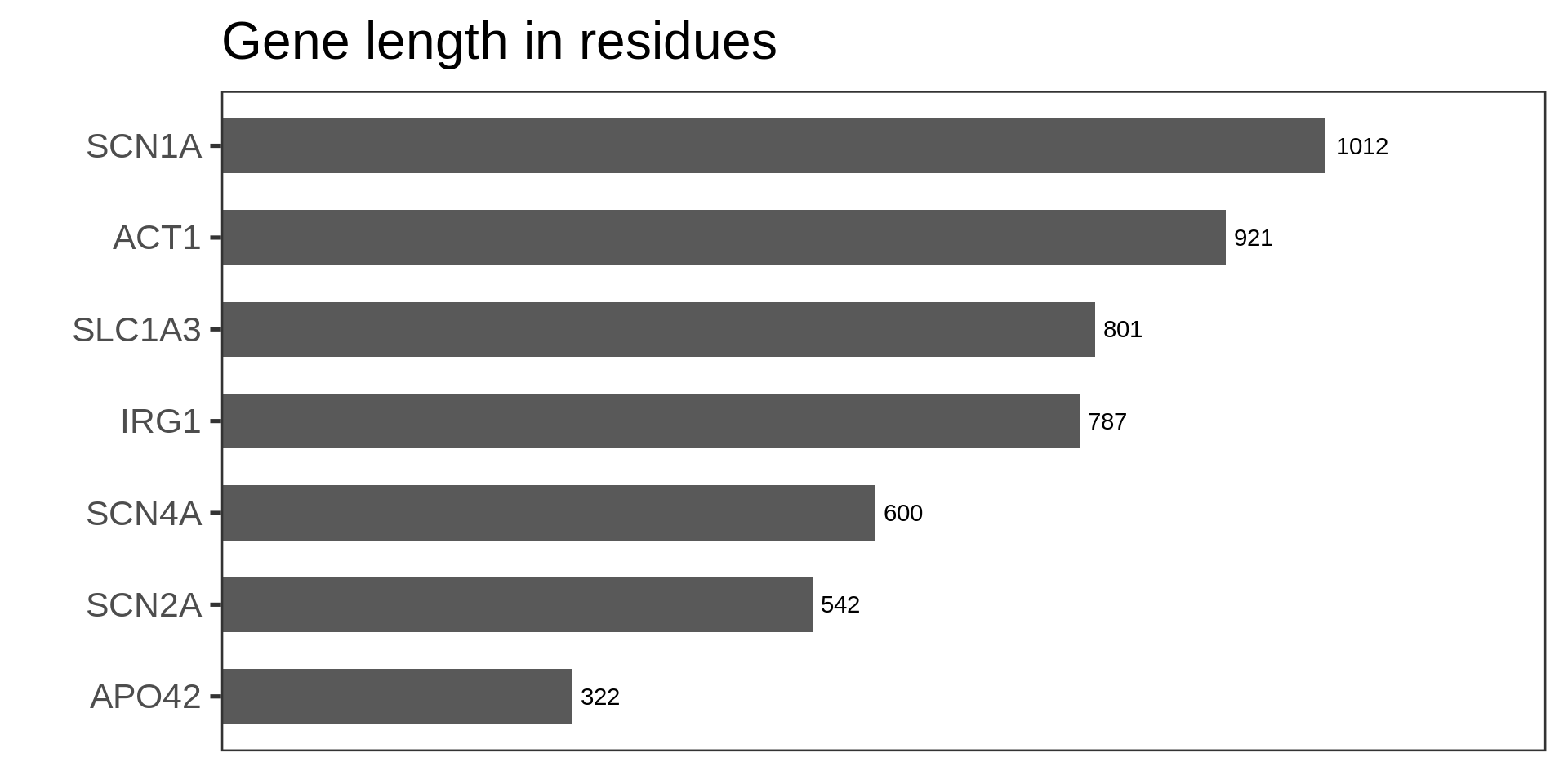

But this?

Palettes and their use

Types of palettes

Popular color spaces - Brewer - Viridis - Jet (Python)

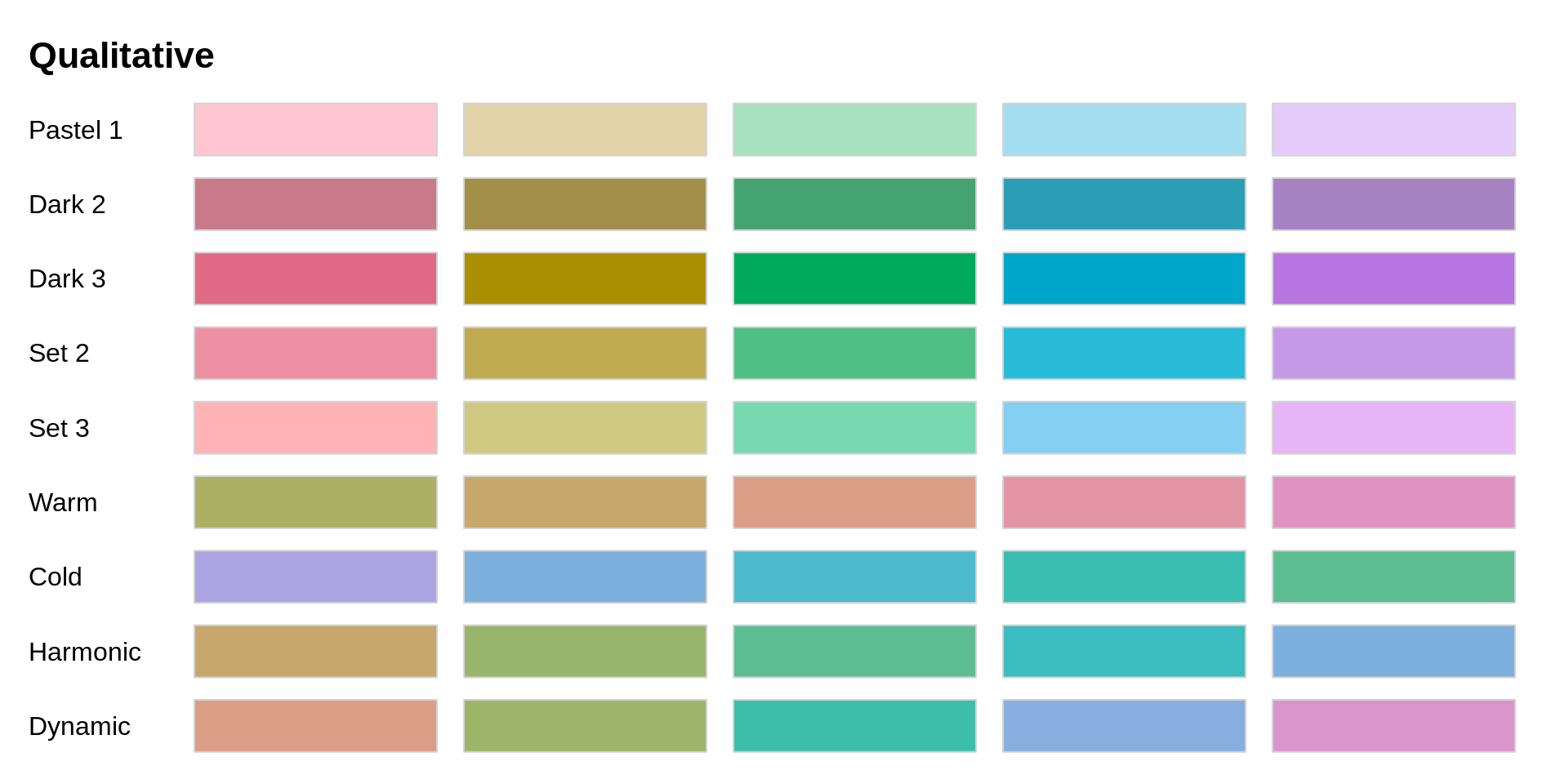

Qualitative palettes

Use for unordered categorical data

• Lighter colours (high luminance) are less distracting
• Flashy colours are needed for points or lines

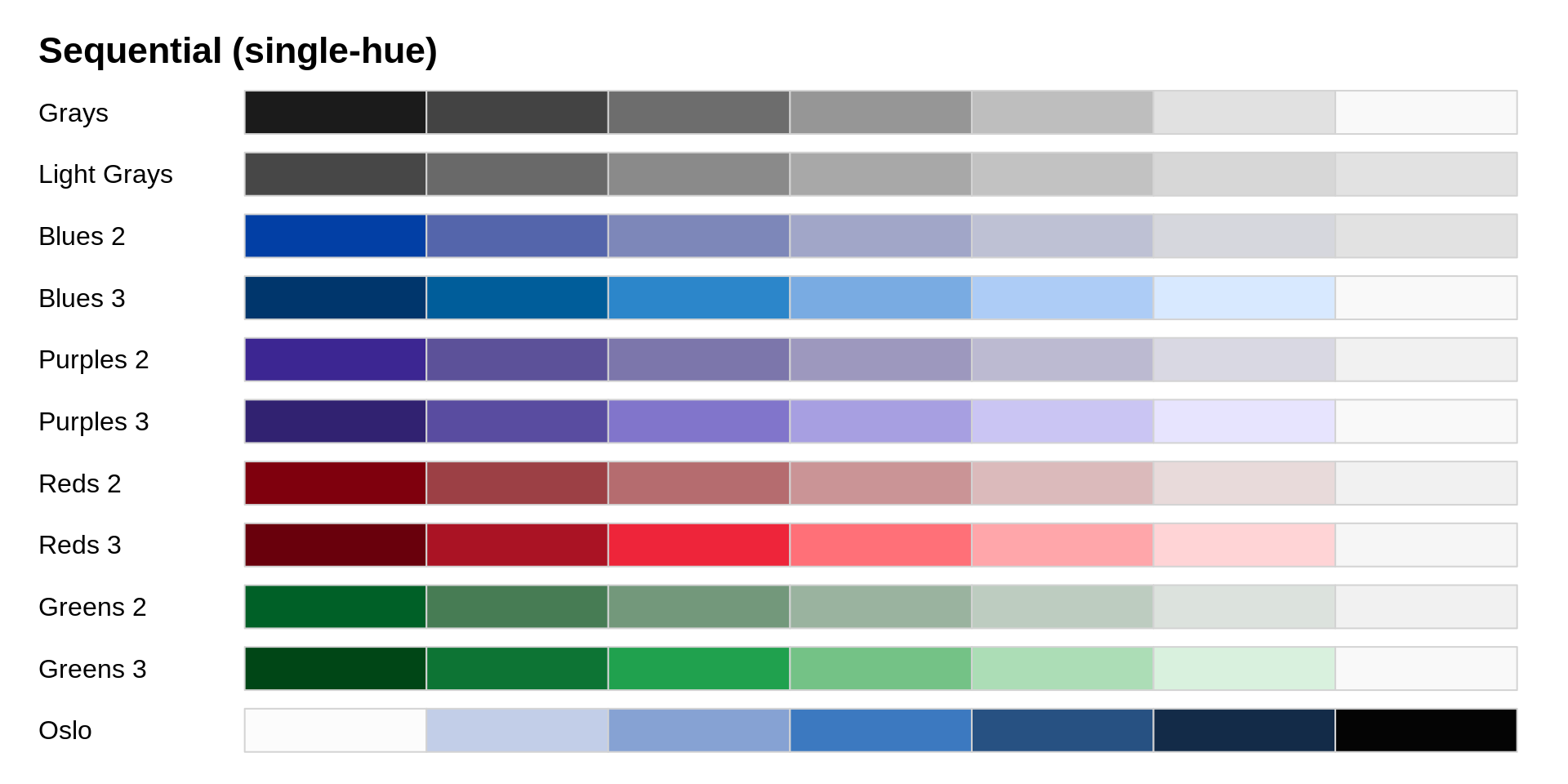

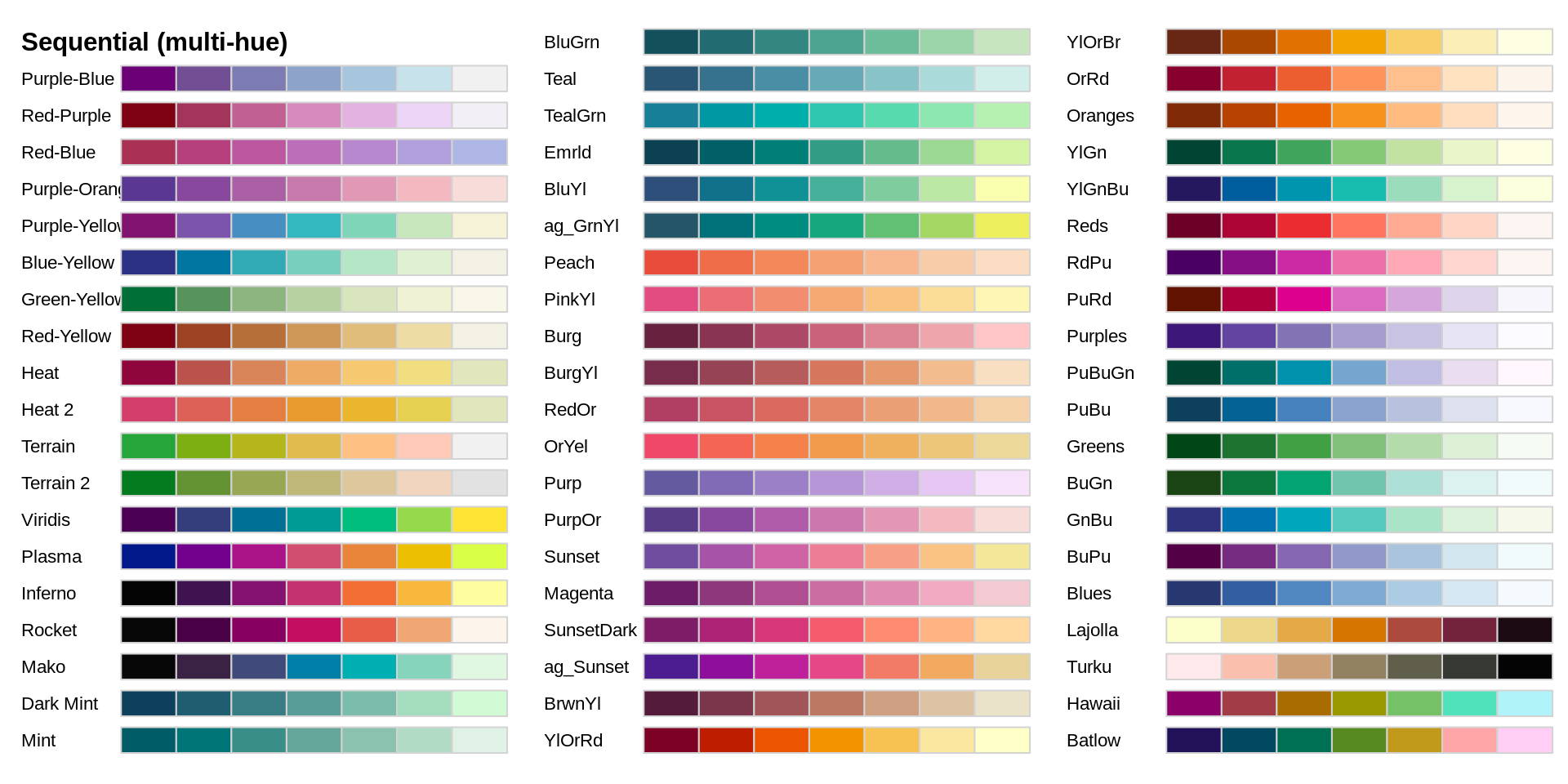

Sequential palettes

• Ordered categorical data (choice of n)
• Binned numerical data

The relation of color depth and numerical values is highly subjective.

Sequential palettes

• Ordinal data (choice of n)
• Numerical data

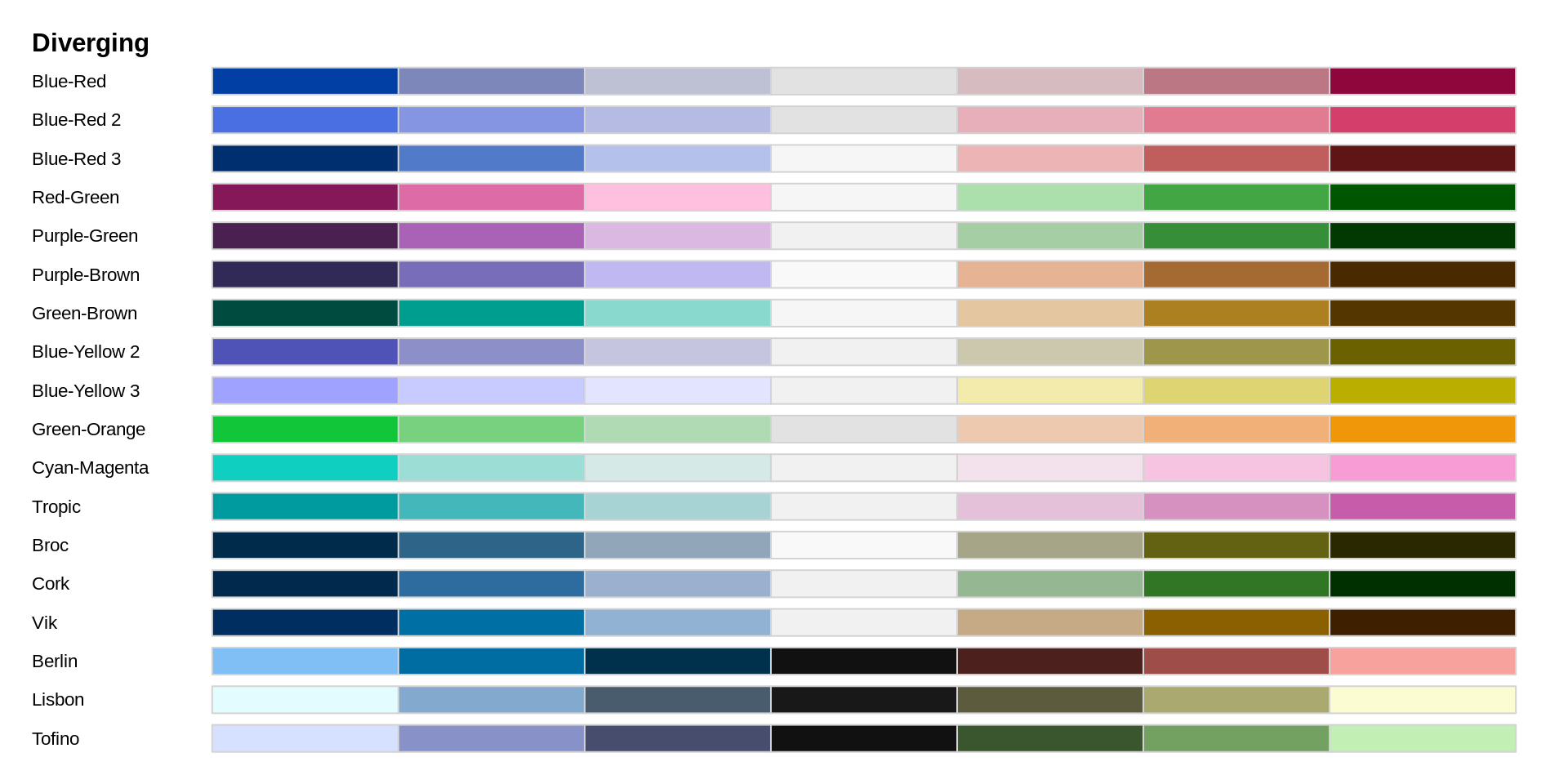

Diverging palettes

• Opposing values
• Few samples with high and low scores
• Examples:
  • Correlation \(r^2 [-1, 1]\)
  • Bimodal distributions

How colors are selected

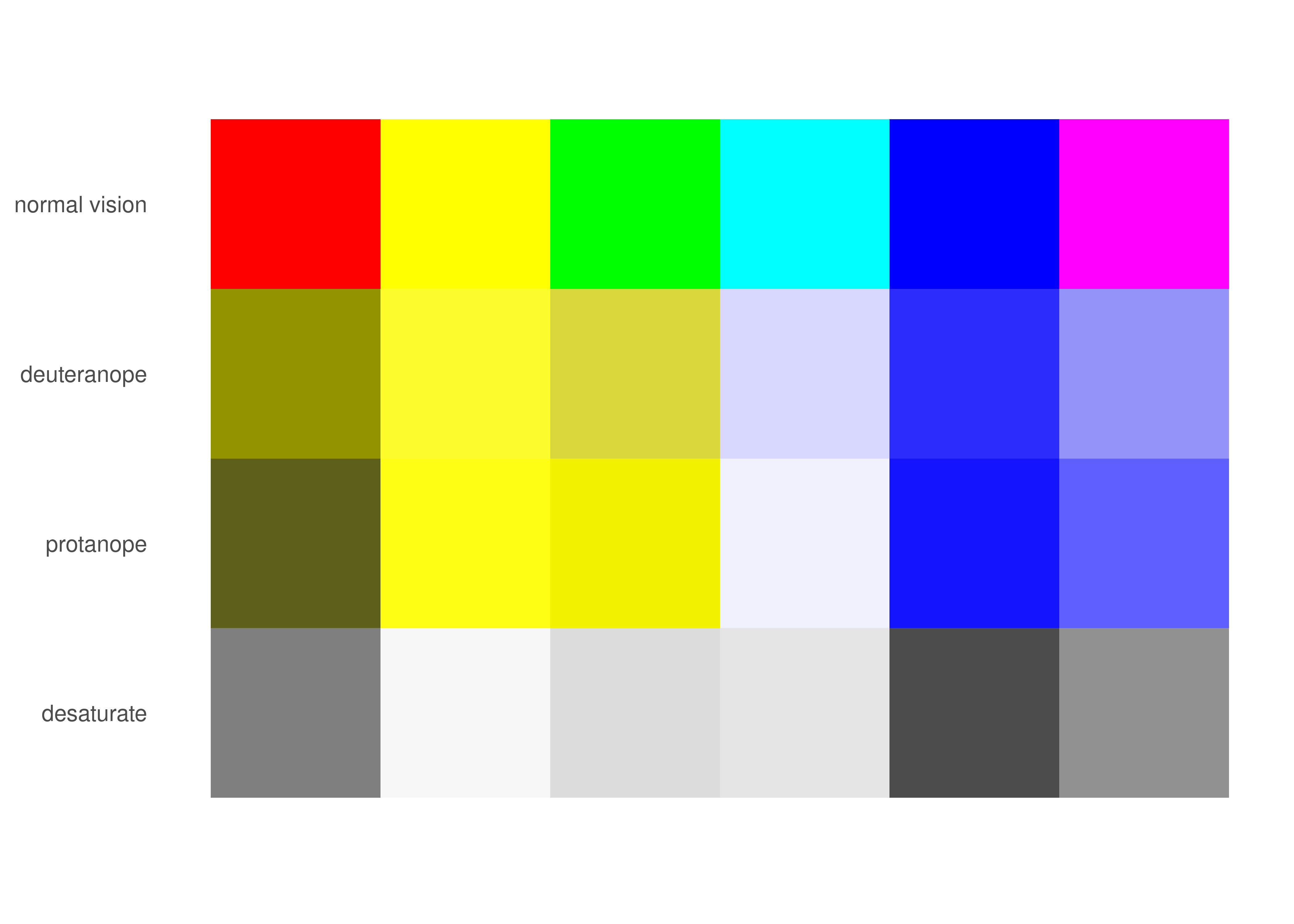

Choosing a color-blind friendly palette

All colors

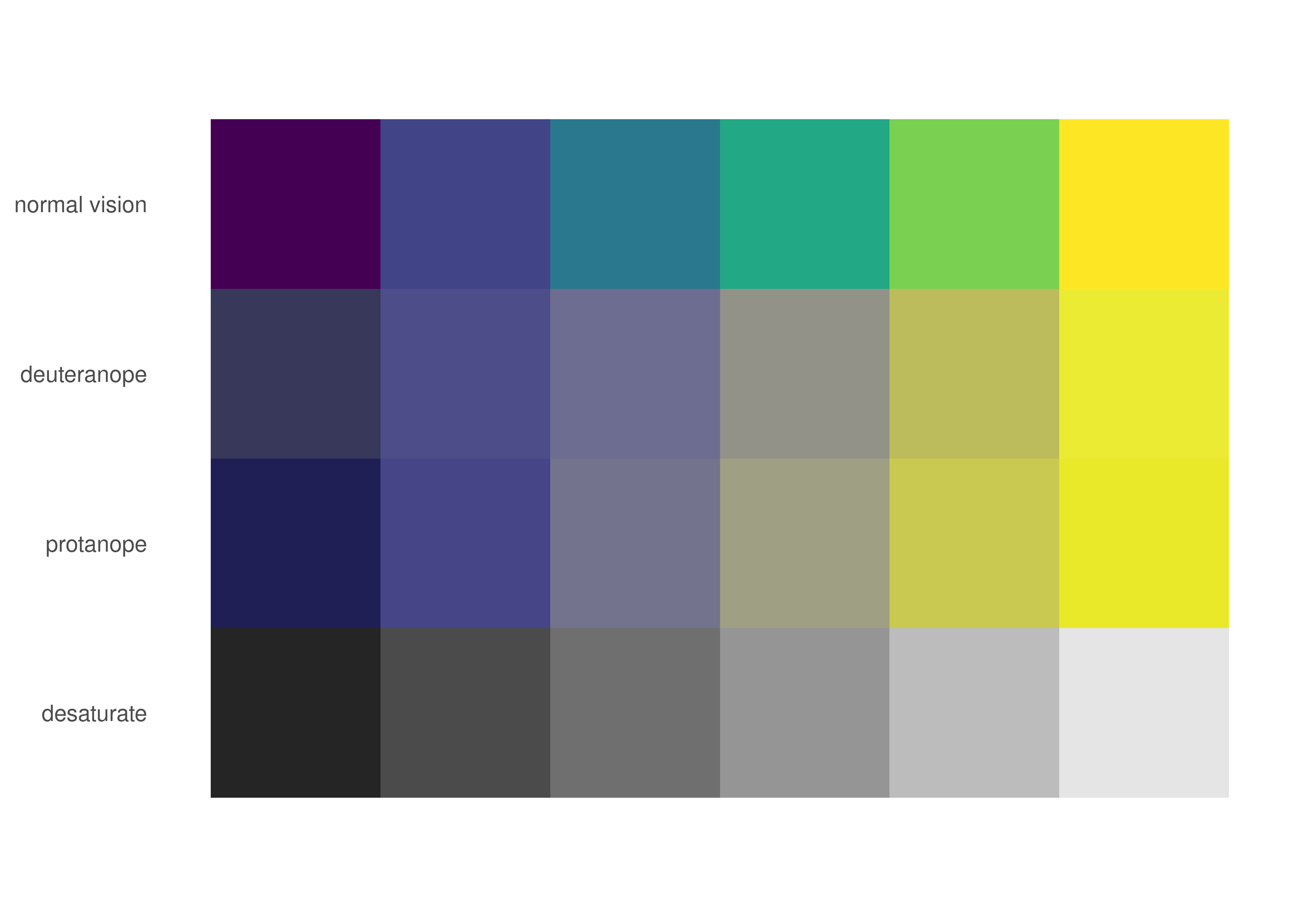

viridis design

Tip

The colorBlindness package can render your palette in this fashion.

Too many colors

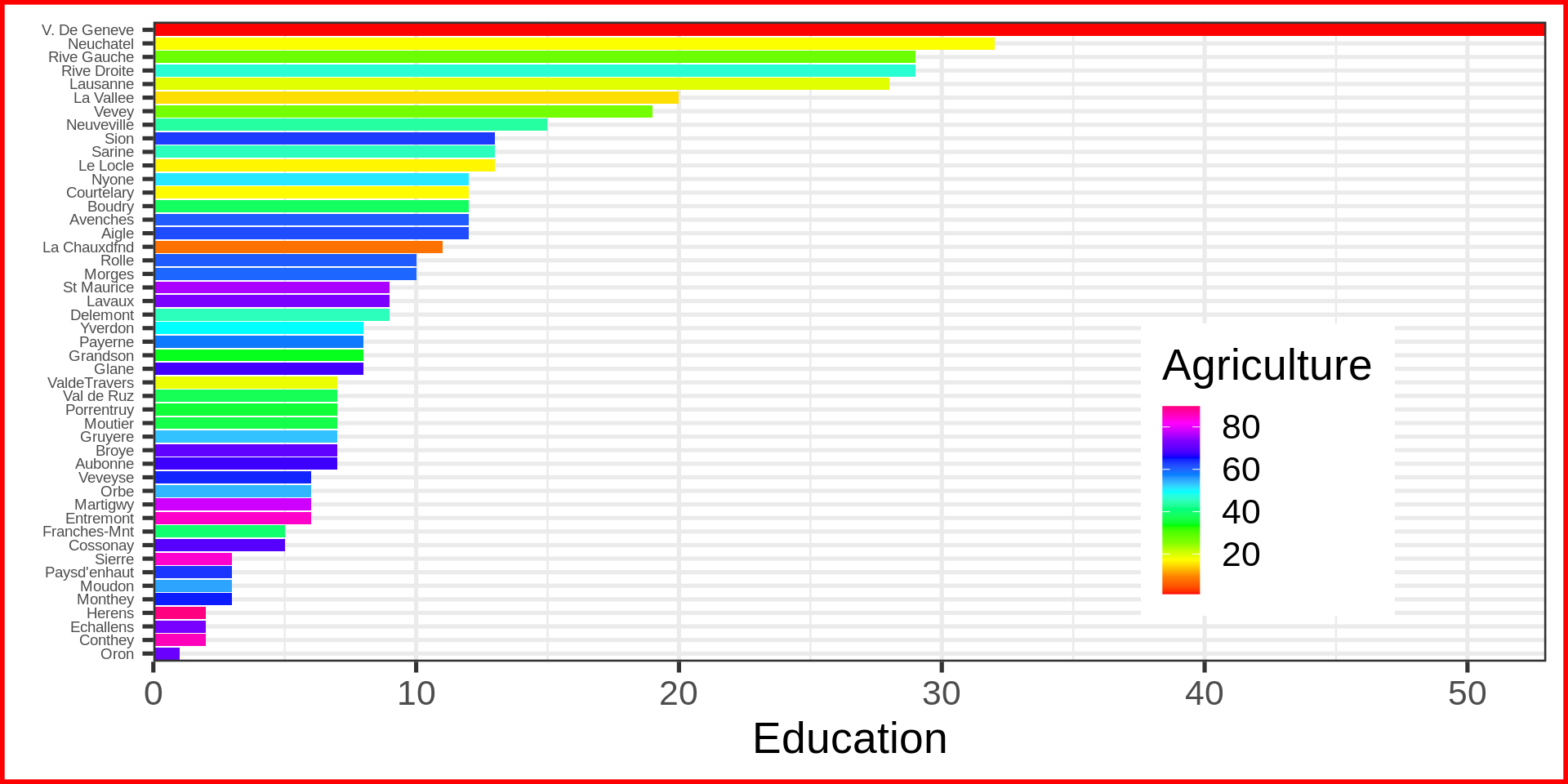

Continous, rainbow palette

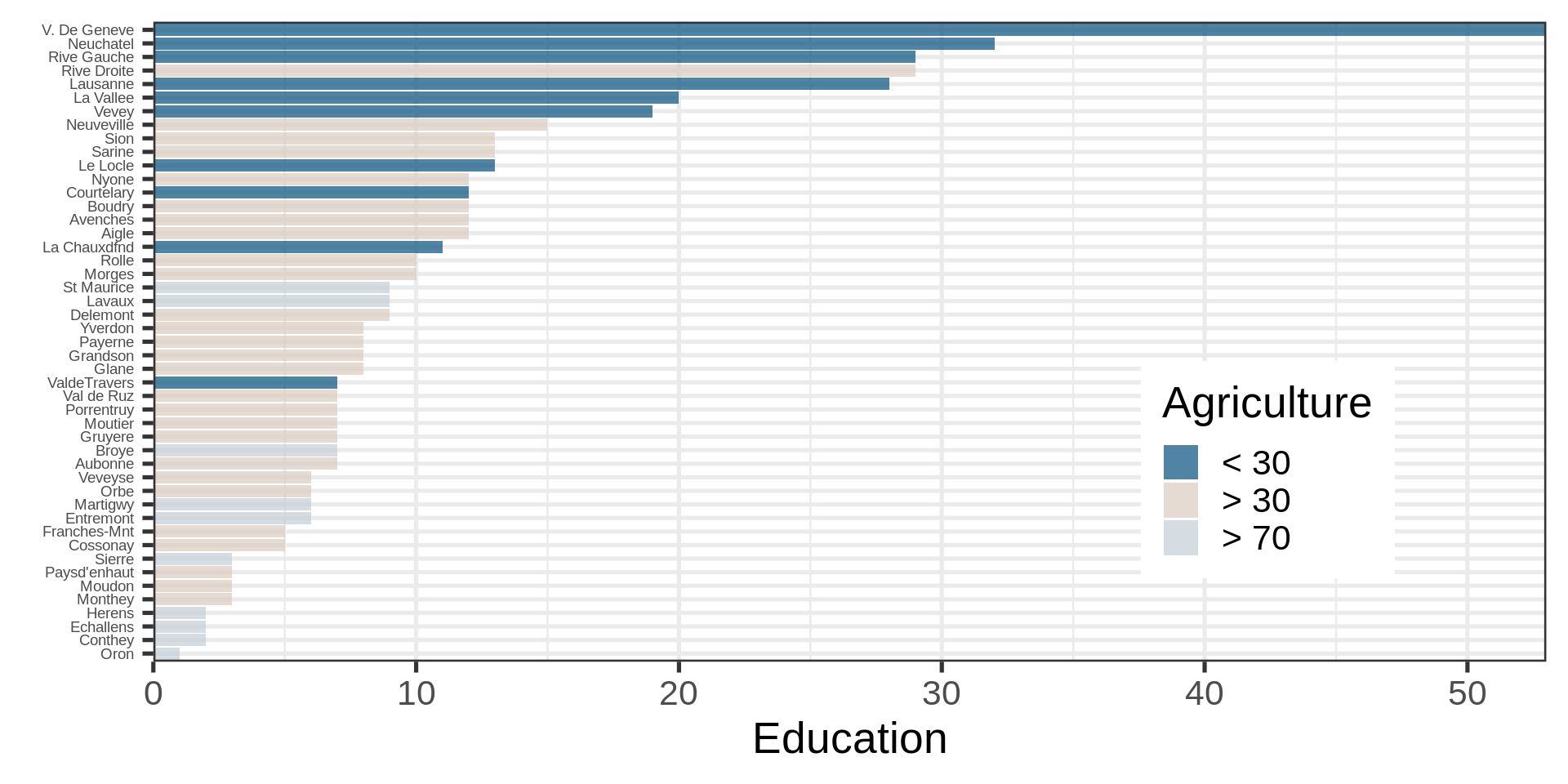

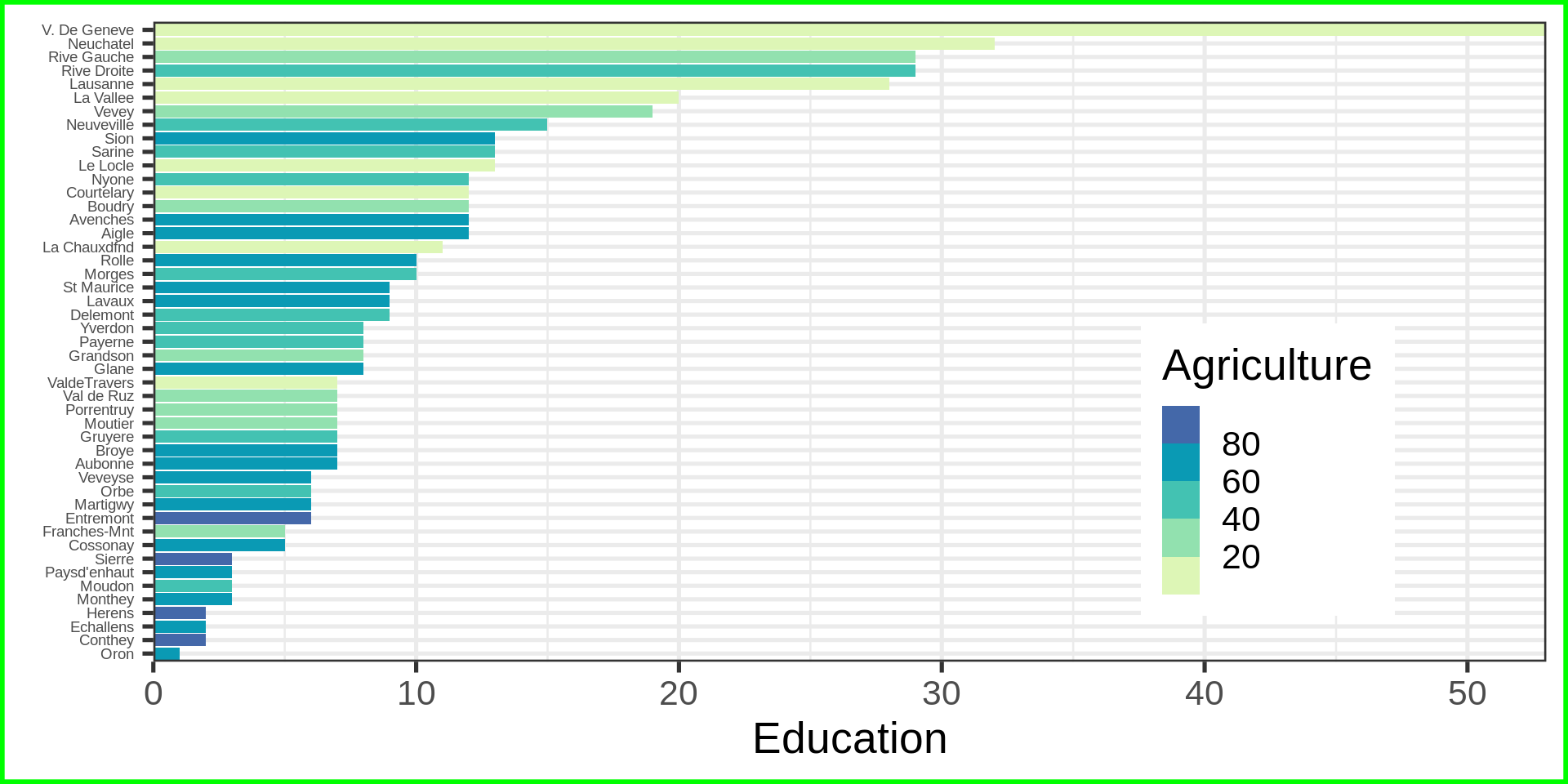

Binning and another palette

Focusing on a few important points

As a table

Province	Education	Agriculture
V. De Geneve		1
Neuchatel		18
Rive Droite		47
Rive Gauche		28
Lausanne		19
La Vallee		15
Vevey		27
Neuveville		44
Sarine		45
Sion		63
Le Locle		17
Courtelary		17

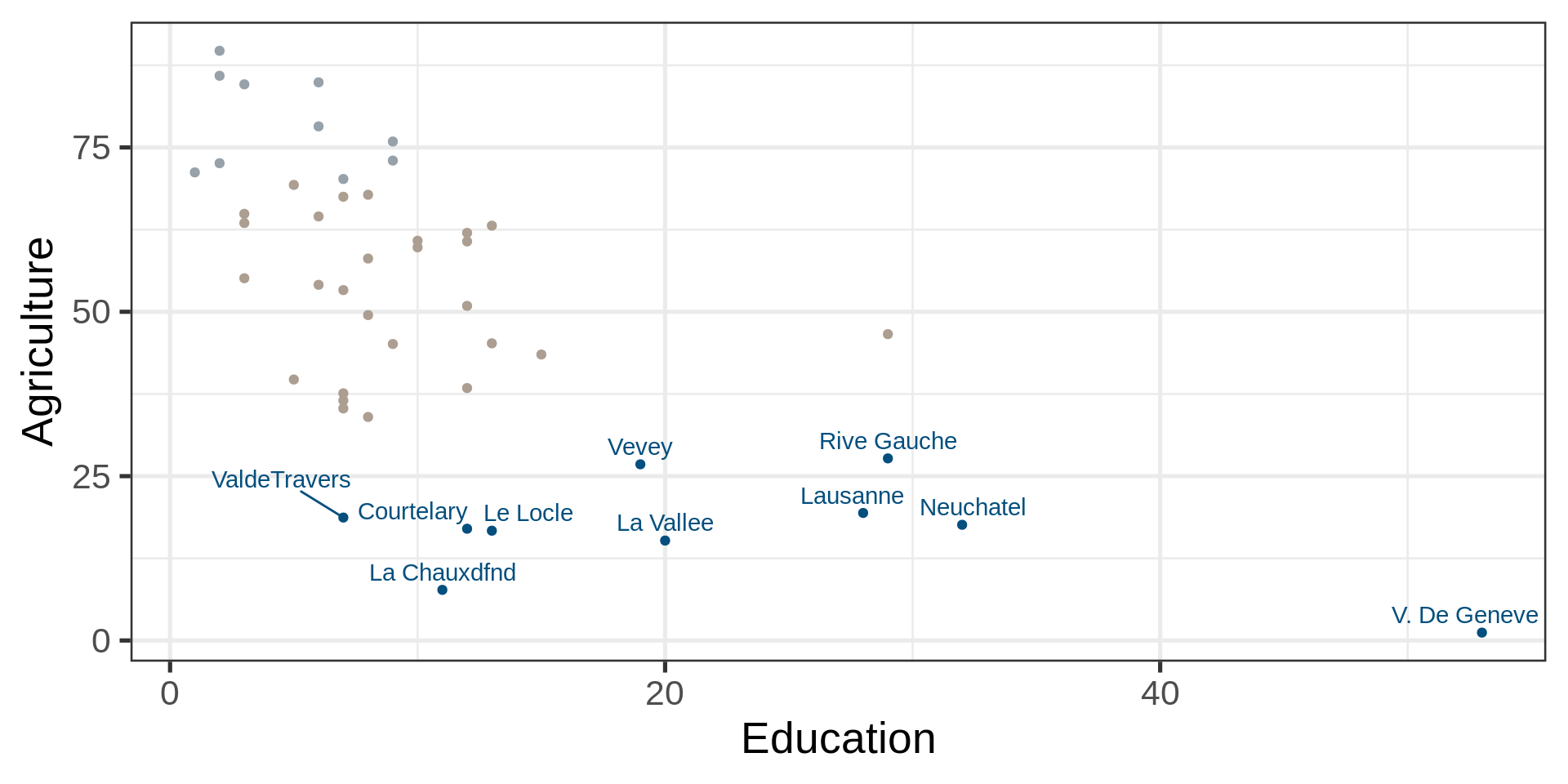

Preferred - scatter plot

Developing a suitable color scheme

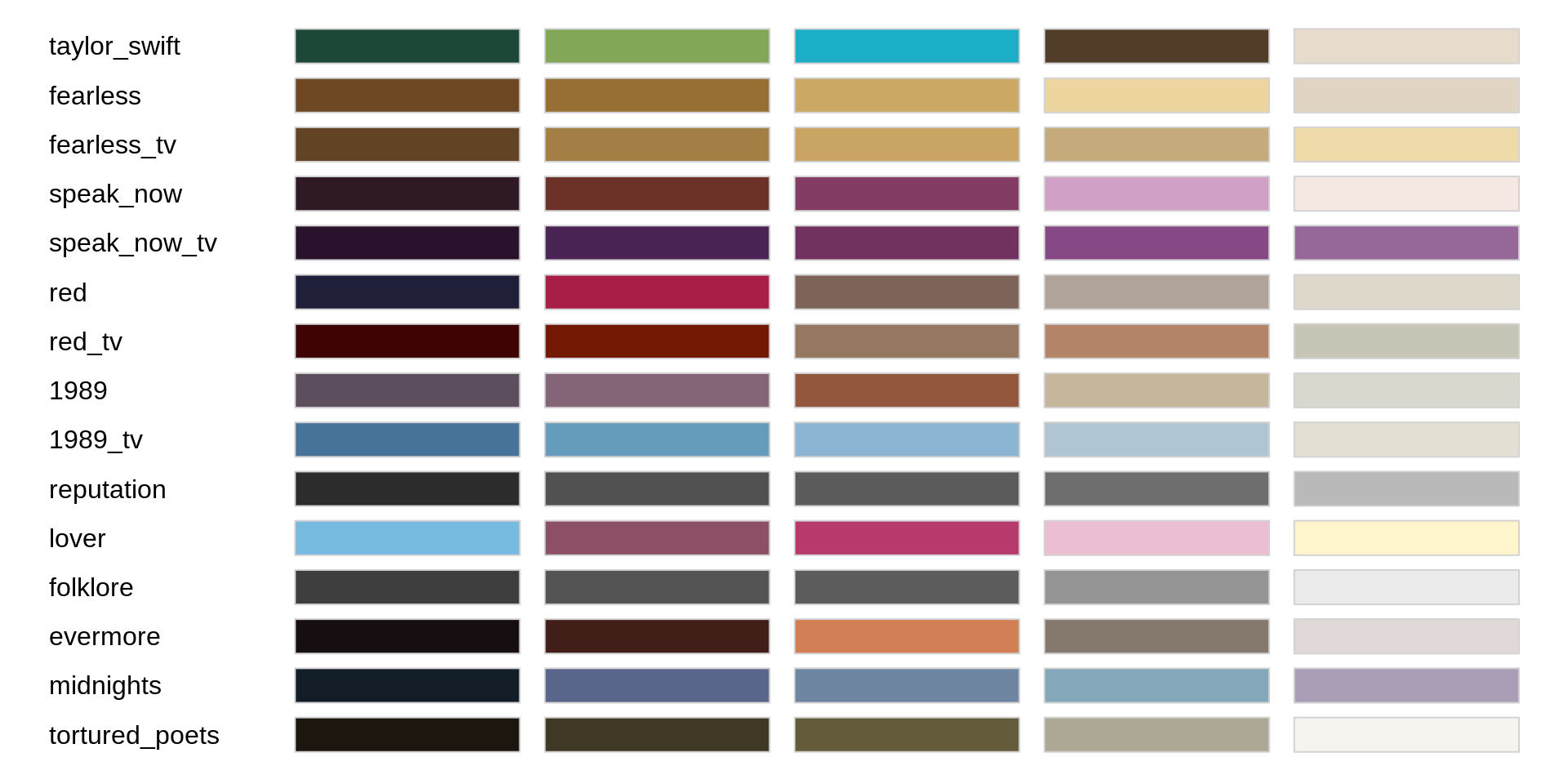

Taylor Swift

Album covers

How to create a custom palette

colorspace package

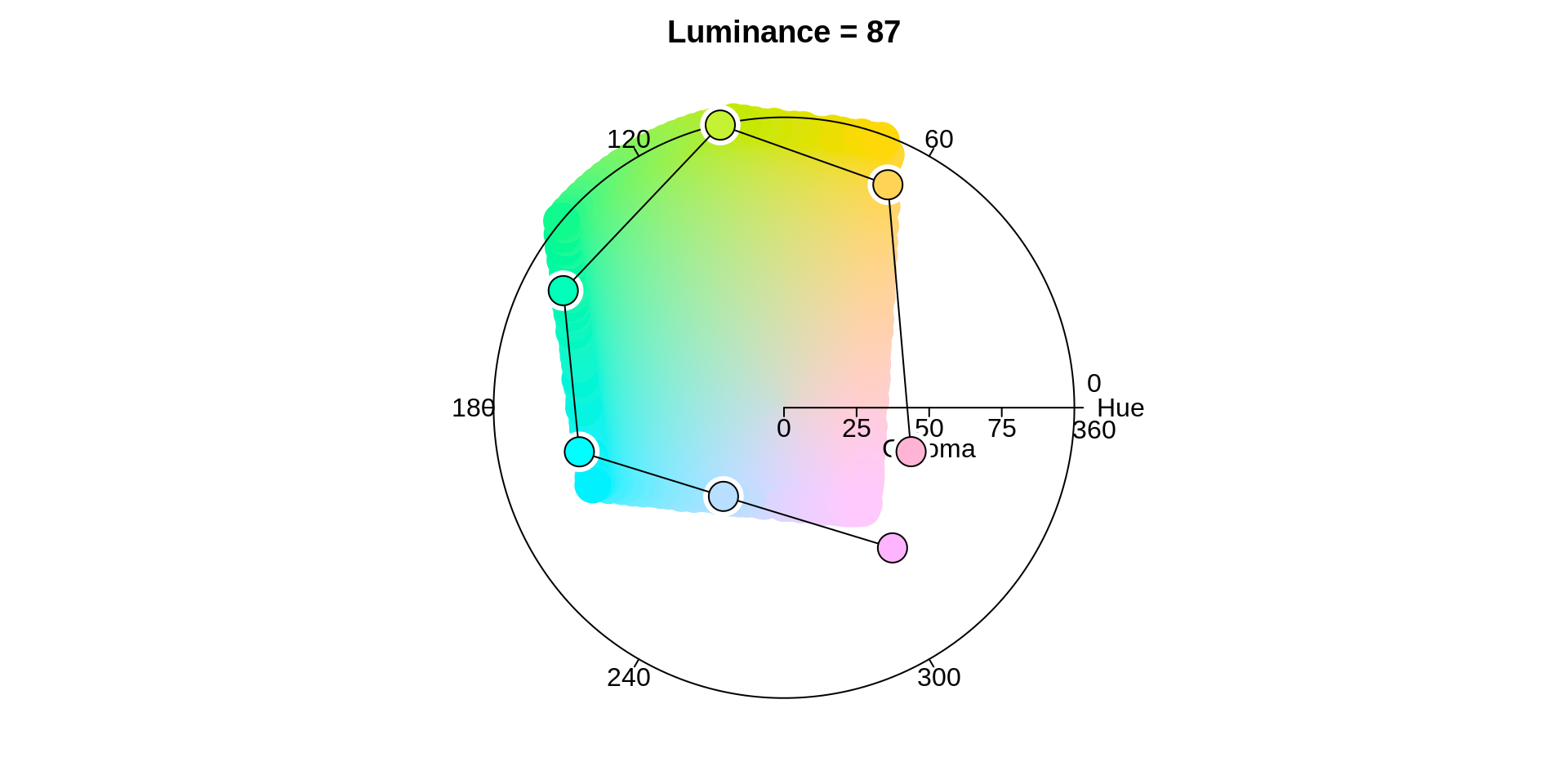

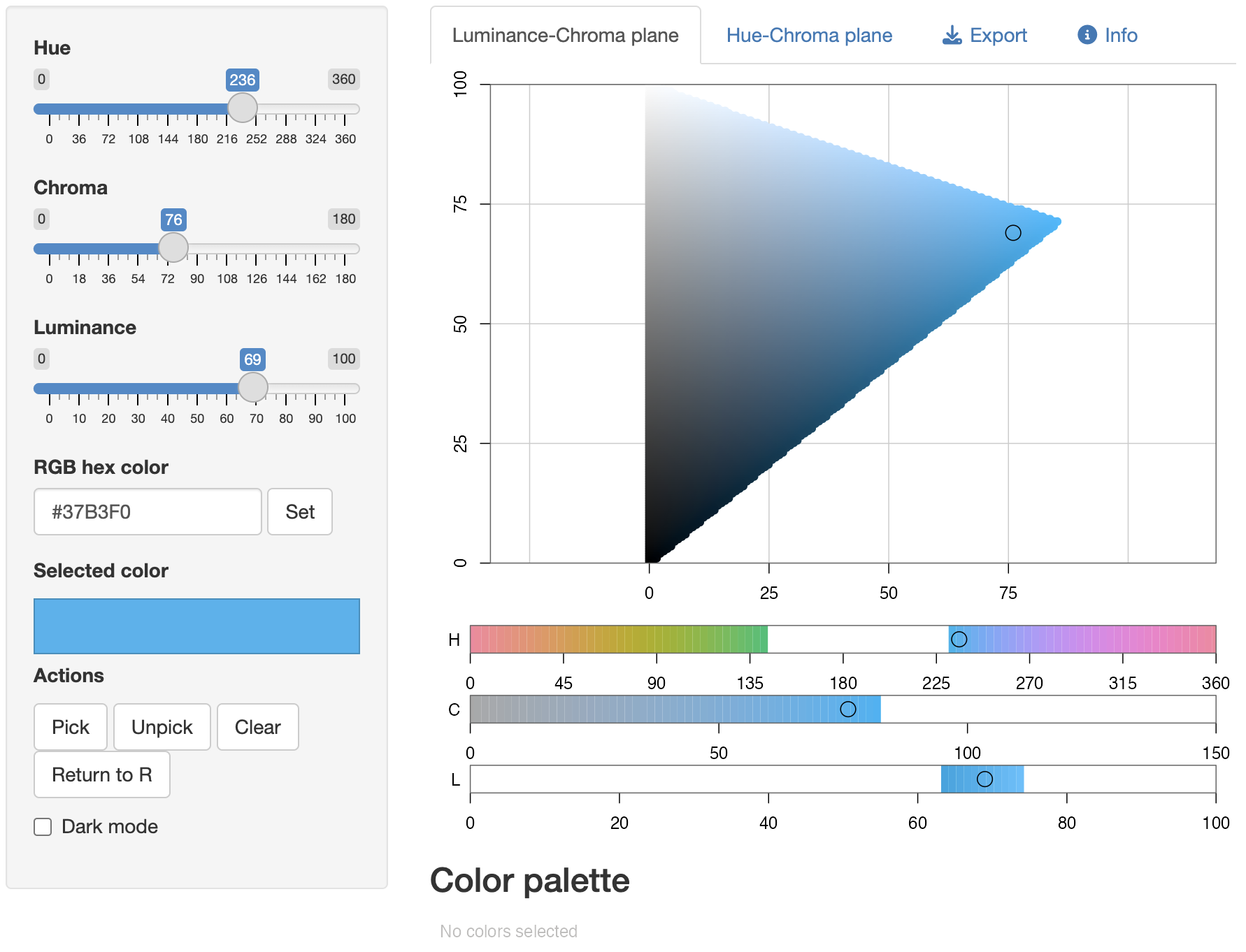

HCL Picker and HCL wizard

HCL Picker

Existing color schemes

• Brewer palette
• HCL palette
• paleteer finder

Online palette generators

Color Tool

Recommendations for your projects

Make active use of colour

1. Motivate your choice
2. No need to design your own palette
3. Use fewer colors

In any case document and comment!

Before we stop

We discussed

• Color use
• Palettes
  • categorical/qualitative, sequential, diverging

Acknowledgements

Claus O. Wilke

Other materials

• ggthemes
• colorspace

• gt and gtExtra

Thank you for your attention!
